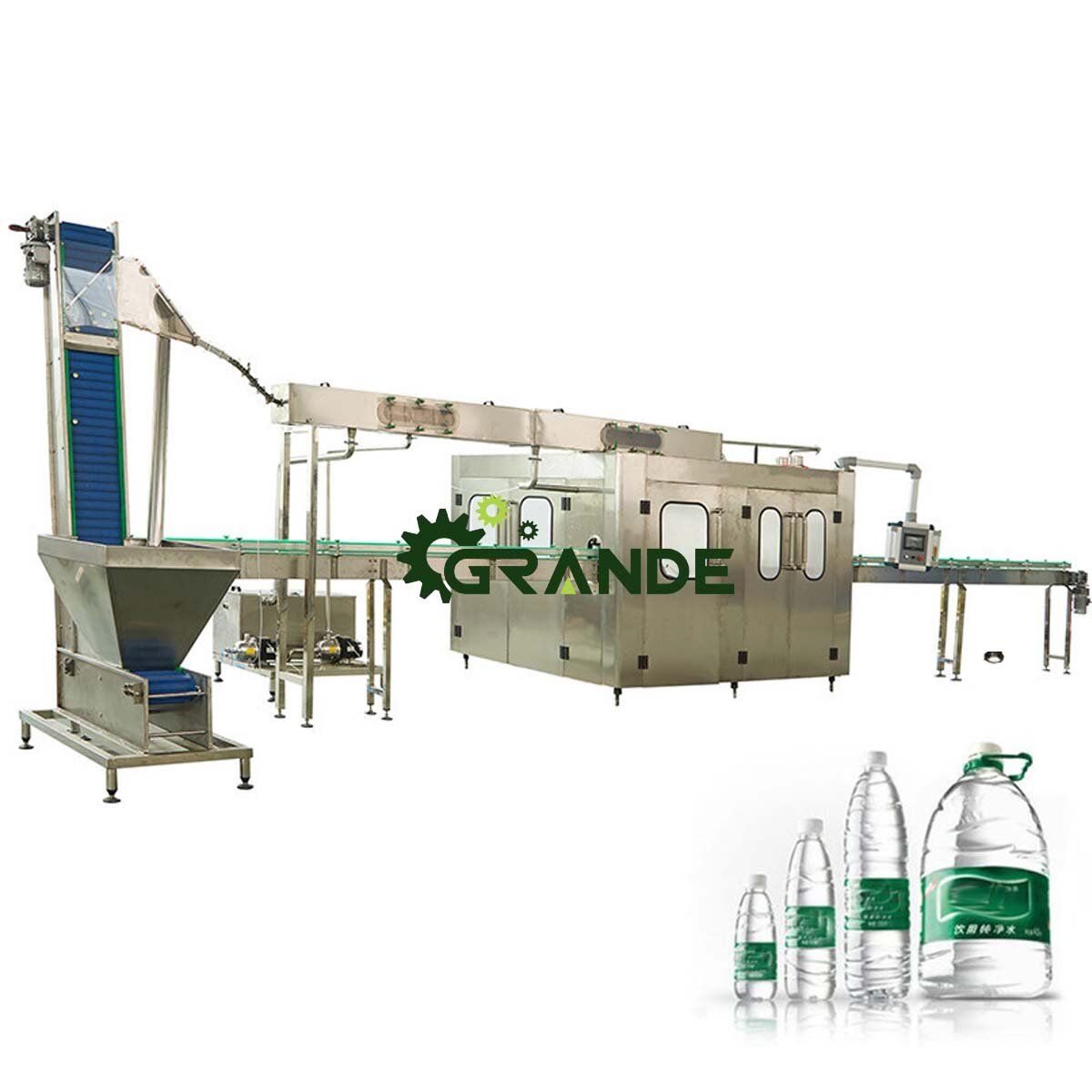

Automatic Mineral Pure Water Bottling Filling Machine

The water filling machine can fill mineral water, pure water, soda water and flavoured water. It is 3 in 1 machine, can finish bottle filling, filling and capping one time. We also have equipment machine like water purification system, bottle blowing machine, date printing machine, labeling machine, filming shrink machine to meet a water factory requirement.

Additional information

Process Capacity

2000-24000 BPH

Volume Range

300-3000 ML

Power

2 KW

Machine Material

Stainless Steel

OEM

Yes

Product Details:

The Automatic mineral pure water bottling filling machine has different models for different scale water factory.

This is a full automatically line, can finish the work from the start to final bottled water in one machine. It can use PET, PT and glass bottles. Depends on you request, we can design different machines that is proper for you.



Machine advantages:

  1. This machine combine the washing, filling and capping together. Specially designed for the water and juice.
  2. Use constant pressure liquor level setting filling principle. In order to suit the filling requirement, the valve no back flow.
  3. All the part touch the water use the O type ring, star ring rubber. The rotate axis adopt grinding process, improve smooth finish, and can prolong the service life of the seal ring.
  4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling level.



Model for Your Choice

Model GDFA

8-8-3

GDFA

12-12-6

GDFA

18-18-6

GDFA

24-24-8

GDFA

32-32-8

GDFA

40-40-10

GDFA

50-50-12

Washing Head Qty 8 12 18 24 32 40 50
Filling Head Qty 8 12 18 24 32 40 50
Cappiing Head Qty 3 6 6 8 8 10 12
Capacity

(500ml)

2000BPH 4000BPH 8000BPH 12000BPH 15000BPH 20000BPH 24OOOBPH
Installed Power 2KW 3.5KW 4KW 4.8KW 7.6KW 8.3KW 9.6kw
Overall Size 2*1.600*2.4M 2.5*1.8*2.4M 2.6*1.9*2.4M 2.9*2.1*2.4M 4.1*2.4*2.4M 4.50*2.6*2.4M 5.45*3.2*2.4M
